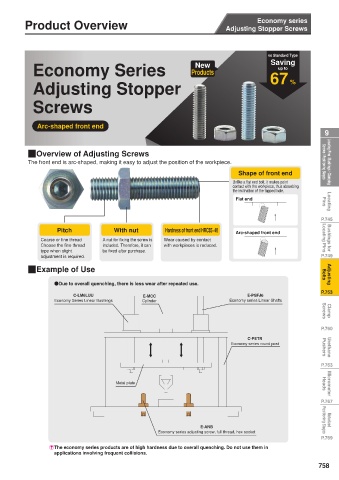

Economy series
Product Overview Adjusting Stopper Screws

vs Standard Type
Saving
Economy Series Products up to
New
Adjusting Stopper 67 %

Screws

Arc-shaped front end
9

QOverview of Adjusting Screws
The front end is arc-shaped, making it easy to adjust the position of the workpiece. Screws / Positioning Stages Locating Pins / Bushings / Clamping
Shape of front end
Unlike a flat end bolt, it makes point
contact with the workpiece, thus absorbing
the inclination of the tapped hole.
Flat end Pins Locating

P.745
Pitch With nut Hardness of front end HRC35~40 Arc-shaped front end
Coarse or fine thread A nut for fixing the screw is Wear caused by contact Locating Pins Bushings for
Choose the fine thread included. Therefore, it can with workpieces is reduced.
type when slight be fixed after purchase.
adjustment is required. P.749
QExample of Use Bolts Adjusting

I Due to overall quenching, there is less wear after repeated use.
P.753
C-LM6LUU E-MCC E-PSFJ6
Economy Series Linear Bushings Cylinder Economy series Linear Shafts Screws Clamp

P.760
C-PETR
Economy series round post Pushers Urethane

P.763

Metal plate Heads Micrometer

P.767

E-ANB Positioning Stages Motorized
Economy series adjusting screw, full thread, hex socket
P.769
E The economy series products are of high hardness due to overall quenching. Do not use them in
applications involving frequent collisions.
