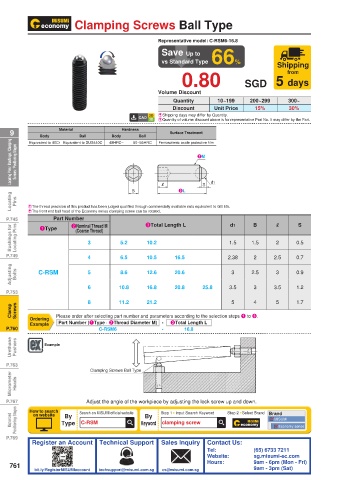

Page 766 - MISUMI SINGAPORE Economy Series

Clamping Screws Ball Type

Representative model: C-RSM6-16.8
Save Up to
vs Standard Type 66% Shipping
0.80 SGD 5 days
from

Volume Discount
Quantity 10~199 200~299 300~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
9 Equivalent to 40Cr Equivalent to SUS440C 48HRC~ Hardness Ball Ferrosoferric oxide protective film
Surface Treatment
Ball
Body
Body
Locating Pins / Bushings / Clamping Screws / Positioning Stages 2M
50~55HRC

B L 3L S d1
Locating Pins E The thread precision of this product has been judged qualified through commercially available nuts equivalent to GB 6G.

Part Number
P.745 EThe front end ball head of the Economy series clamping screw can be rotated. d1 B L S
3Total Length L
2Nominal Thread M
Bushings for Locating Pins (Coarse Thread) 5.2 10.2 1.5 1.5 2 0.5
1Type
3
P.749 4 6.5 10.5 16.5 2.38 2 2.5 0.7
Adjusting Bolts C-RSM 5 8.6 12.6 20.6 3 2.5 3 0.9

P.753 6 10.8 16.8 20.8 25.8 3.5 3 3.5 1.2
8 11.2 21.2 5 4 5 1.7
Clamp Screws Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Thread Diameter M) - 3Total Length L
P.760 C-RSM6 - 16.8
Urethane Pushers Example

P.763 Clamping Screws Ball Type
Micrometer Heads

P.767 Adjust the angle of the workpiece by adjusting the lock screw up and down.
Motorized Positioning Stages How to search Type Search on MISUMI official website Keyword Step 1 Input Search Keyword Step 2 Select Brand Brand
on website
By
By
MISUMI
C-RSM
clamping screw
Economy series
P.769
