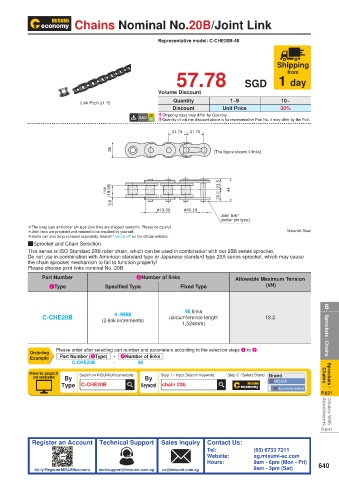

Page 645 - MISUMI SINGAPORE Economy Series

Chains Nominal No.20B/Joint Link

Representative model: C-CHE20B-48

Shipping
57.78 SGD 1 day
from

Volume Discount
Quantity 1~9 10~
Link Pitch 31.75
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
31.75 31.75

26 (The figure shows 4 links)

min (19.56) 23.8 20.2 44
3.6
φ 19.05 φ 10.19
Material: S45C Equivalent (Teeth Tip: Induction hardening) Joint link ＊
(cotter pin type)
Attachments: Set Screw (Only Shaft Hole Specifications N)
＊The snap type and cotter pin type joint links are shipped randomly. Please be careful
＊Joint links are provided and needed to be installed by yourself. Material: Steel
＊Joints can also be purchased separately. Search “Joint Link” on the official website.
QSprocket and Chain Selection
This series is ISO Standard 20B roller chain, which can be used in combination with our 20B series sprocket.
Do not use in combination with American standard type or Japanese standard type 20A series sprocket, which may cause
the chain sprocket mechanism to fail to function properly!
Please choose joint links nominal No. 20B.
Part Number 2Number of links Allowable Maximum Tension
1Type Specified Type Fixed Type (kN)

6
48 links
C-CHE20B 4~9998 (circumference length 18.2
(2-link increments)
1,524mm) Sprockets / Chains

Please order after selecting part number and parameters according to the selection steps 1 to 2.
Ordering
Example Part Number (1Type) - 2Number of links
C-CHE20B - 48
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI Chains Sprockets /
Type C-CHE20B Keyword chain 20b
Economy series
P.621

Attachments
P.641
Chains With
