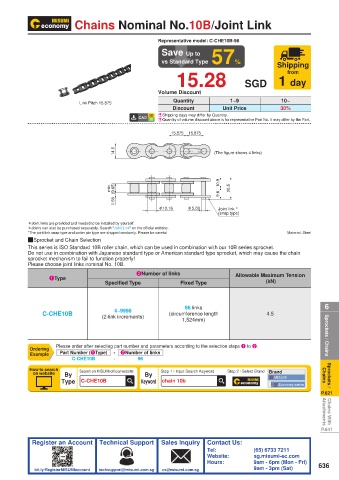

Page 641 - MISUMI SINGAPORE Economy Series

Chains Nominal No.10B/Joint Link

Representative model: C-CHE10B-96
Save Up to
vs Standard Type 57% Shipping
15.28 SGD 1 day
from

Volume Discount
Quantity 1~9 10~
Link Pitch 15.875
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

15.875 15.875

14.6 (The figure shows 4 links)

10.9
min (9.65) 9.6 20.5
1.65
φ 10.16 φ5.08 Joint link ＊
Material: S45C Equivalent (Teeth Tip: Induction hardening) (snap type)
Attachments: Set Screw (Only Shaft Hole Specifications N)
＊Joint links are provided and needed to be installed by yourself.
＊Joints can also be purchased separately. Search “Joint Link” on the official website.
*The joint link snap type and cotter pin type are shipped randomly. Please be careful Material: Steel
QSprocket and Chain Selection
This series is ISO Standard 10B roller chain, which can be used in combination with our 10B series sprocket.
Do not use in combination with Japanese standard type or American standard type sprocket, which may cause the chain
sprocket mechanism to fail to function properly!
Please choose joint links nominal No. 10B.
2Number of links Allowable Maximum Tension
1Type
Specified Type Fixed Type (kN)

96 links 6
4~9998
C-CHE10B (2-link increments) (circumference length 4.5
1,524mm)

Please order after selecting part number and parameters according to the selection steps 1 to 2. Sprockets / Chains
Ordering
Example Part Number (1Type) - 2Number of links
C-CHE10B - 96
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By Chains Sprockets /
Type C-CHE10B Keyword chain 10b MISUMI
Economy series
P.621

Attachments
P.641
Chains With
