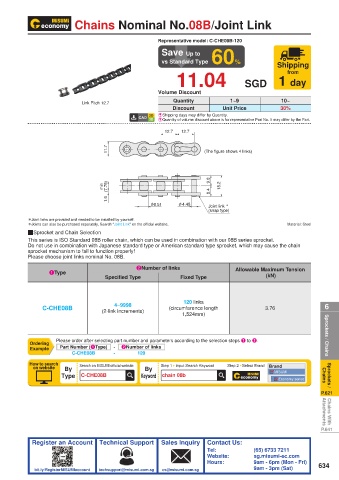

Page 639 - MISUMI SINGAPORE Economy Series

Chains Nominal No.08B/Joint Link

Representative model: C-CHE08B-120
Save Up to
vs Standard Type 60% Shipping
11.04 SGD 1 day
from

Volume Discount
Quantity 1~9 10~
Link Pitch 12.7
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
12.7 12.7

11.7 (The figure shows 4 links)

9.8
min (7.75) 8.4 18.2
1.6
φ 8.51 φ4.45 Joint link ＊
(snap type)
＊Joint links are provided and needed to be installed by yourself.
＊Joints can also be purchased separately. Search “Joint Link” on the official website. Material: Steel
QSprocket and Chain Selection
This series is ISO Standard 08B roller chain, which can be used in combination with our 08B series sprocket.
Do not use in combination with Japanese standard type or American standard type sprocket, which may cause the chain
sprocket mechanism to fail to function properly!
Please choose joint links nominal No. 08B.
2Number of links Allowable Maximum Tension
1Type
Specified Type Fixed Type (kN)

120 links
4~9998
C-CHE08B (2-link increments) (circumference length 3.76 6
1,524mm)

Please order after selecting part number and parameters according to the selection steps 1 to 2. Sprockets / Chains
Ordering
Example Part Number (1Type) - 2Number of links
C-CHE08B - 120
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
Type C-CHE08B Keyword chain 08b Economy series Chains Sprockets /

P.621

Attachments
Chains With
P.641
