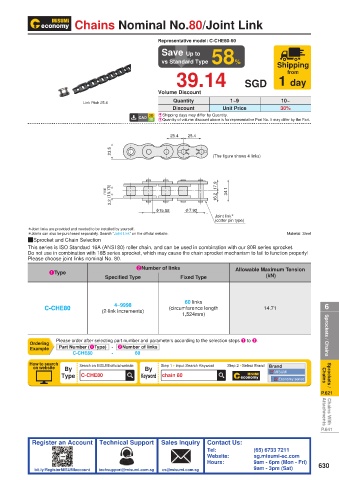

Page 635 - MISUMI SINGAPORE Economy Series

Chains Nominal No.80/Joint Link

Representative model: C-CHE80-60
Save Up to
vs Standard Type 58% Shipping
39.14 SGD 1 day
from

Volume Discount
Quantity 1~9 10~
Link Pitch 25.4
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

25.4 25.4

23.5 (The figure shows 4 links)

min (15.75) 17.9 34.1
3.2 16.2
φ 15.88 φ7.92
Material: S45C Equivalent (Teeth Tip: Induction hardening) Joint link ＊
(cotter pin type)
Attachments: Set Screw (Only Shaft Hole Specifications N)
＊Joint links are provided and needed to be installed by yourself.
＊Joints can also be purchased separately. Search “Joint Link” on the official website. Material: Steel
QSprocket and Chain Selection
This series is ISO Standard 16A (ANSI 80) roller chain, and can be used in combination with our 80B series sprocket.
Do not use in combination with 16B series sprocket, which may cause the chain sprocket mechanism to fail to function properly!
Please choose joint links nominal No. 80.
2Number of links Allowable Maximum Tension
1Type
Specified Type Fixed Type (kN)

60 links
4~9998
C-CHE80 (2-link increments) (circumference length 14.71 6
1,524mm)

Please order after selecting part number and parameters according to the selection steps 1 to 2. Sprockets / Chains
Ordering
Example Part Number (1Type) - 2Number of links
C-CHE80 - 60
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
Type C-CHE80 Keyword chain 80 Economy series Chains Sprockets /

P.621

Attachments
Chains With
P.641
