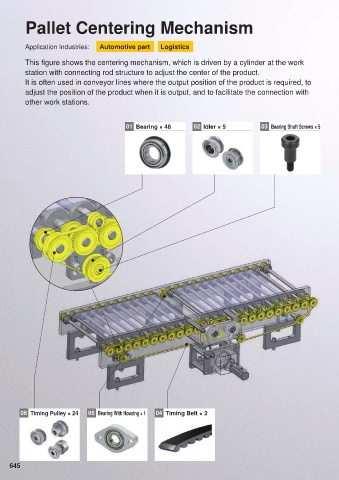

Pallet Centering Mechanism Reference price

Application Industries: Automotive part Logistics

This figure shows the centering mechanism, which is driven by a cylinder at the work
station with connecting rod structure to adjust the center of the product.
It is often used in conveyor lines where the output position of the product is required, to 336.92 SGD/set
adjust the position of the product when it is output, and to facilitate the connection with
other work stations.

01 Bearing × 48 02 Idler × 5 03 Bearing Shaft Screws × 5 01 Bearing × 48 P.653 02 Idler × 5 P.553

I.D. 8mm Belt Width 10mm
O.D. 22mm Number of Teeth 40
Width 7mm Tooth Profile S2M
C-EFL608ZZ C-AHTF40S2M100

1.71 13.16

SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 1.71 1.71 1 13.16 13.16
50 1.46 73.00 10 9.22 92.20

03 Bearing Shaft Screws × 5 P.690 04 Timing Belt × 2 P.579

O.D. 6mm Belt Width 10mm
Length 20mm Belt Length 984mm
C-BMSB6-20 Tooth Profile S2M
C-HTBN984S2M-100

1.46 4.07

SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 1.46 1.46 4 4.07 16.28
50 1.25 62.50 50 3.46 173.00

05 Bearing With Housing × 1 P.680 06 Timing Pulley × 24 P.531

Bearing Part Number 698ZZ Belt Width 10mm
Bearing I.D. 8mm Number of Teeth 36
Light Weight Housing Shaft Hole Dia. d 8mm
Retaining Ring Provided Tooth Profile S2M
C-BACA698ZZ C-HTPA36S2M100-A-P8
5.60 7.00
06 Timing Pulley × 24 05 Bearing With Housing × 1 04 Timing Belt × 2
SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 5.60 5.60 2 7.00 14.00
30 3.92 117.60 30 4.90 147.00
* All products prices are without tax. For prices reference, please visit MISUMI official website.
