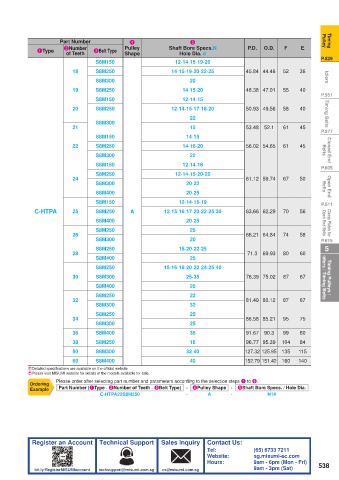

Page 543 - MISUMI SINGAPORE Economy Series

Part Number 4 5 Pulley Timing
1Type 2Number 3Belt Type Pulley Shaft Bore Specs.N P.D. O.D. F E
of Teeth
Hole Dia. d
Shape
S8M150 12·14·15·19·20 P.529
18 S8M250 14·15·19·20·22·25 45.84 44.46 52 36
S8M300 20 Idlers
19 S8M250 14·15·20 48.38 47.01 55 40
P.551
S8M150 12·14·15
20 S8M250 12·14·15·17·18·20 50.93 49.56 58 40
22 Timing Belts
S8M300
21 15 53.48 52.1 61 45
P.577
S8M150 14·15
22 S8M250 14·16·20 56.02 54.65 61 45
S8M300 22 Belts Closed End
S8M150 12·14·16
P.605
S8M250 12·14·15·20·22
24 61.12 59.74 67 50
S8M300 20·22 Belts Open End
S8M400 20·25
S8M150 12·14·15·19 P.611
C-HTPA 25 S8M250 A 12·15·16·17·20·22·25·30 63.66 62.29 70 56
S8M400 20·25 Open End Belts Clamp Plates for
S8M250 25
26 66.21 64.84 74 58
S8M300 20 P.615
S8M250 15·20·22·25 5
28 71.3 69.93 80 60
S8M400 25
S8M250 15·16·18·20·22·24·25·40
30 S8M300 25·35 76.39 75.02 87 67 Idlers / Timing Belts Timing Pulleys /
S8M400 20
S8M250 22
32 81.49 80.12 87 67
S8M300 32
S8M250 25
34 86.58 85.21 95 75
S8M300 25
36 S8M400 35 91.67 90.3 99 80
38 S8M250 16 96.77 95.39 104 84
50 S8M300 32·40 127.32 125.95 135 115
60 S8M400 40 152.79 151.42 160 140
EDetailed specifications are available on the official website
EPlease visit MISUMI website for details of the models available for sale.
Please order after selecting part number and parameters according to the selection steps 1 to 5.
Ordering
Example Part Number (1Type · 2Number of Teeth · 3Belt Type) - 4Pulley Shape - 5Shaft Bore Specs. / Hole Dia.
C-HTPA22S8M250 - A - N14
