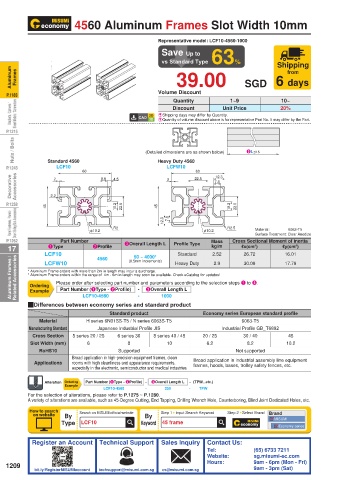

Page 1214 - MISUMI SINGAPORE Economy Series

4560 Aluminum Frames Slot Width 10mm

Representative model: LCF10-4560-1000
Save Up to
vs Standard Type 63% Shipping
Aluminum Frames 39.00 SGD 6 days Frames Aluminum
from

P.1183 Volume Discount 1~9 10~ P.1183
Quantity
Brackets / Corners / Sheet Metals / Connectors E Shipping days may differ by Quantity. 20% Sheet Metals / Connectors Brackets / Corners /
Unit Price
Discount
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
P.1215 P.1215
Nuts / Bolts (Detailed dimensions are as shown below) 3L±0.5 Nuts / Bolts

LCF10
LCFW10
P.1243 Standard 4560 Heavy Duty 4560 P.1243
60
60
60 8.8 22.5 12.3 12.3
60
Decorative Accessories 2 2 4.5 8.8 4.5 2 2 7.8 7.8 Accessories Decorative
22.5
P.1258 45 2.2 45 2.2 10.2 22.5 45 10.2 22.5 45 10.2 22.5 10.2 22.5 P.1258
Panel Fasteners / Panels / Door Sliding Slot Accessories φ10.2 φ10.2 R2 12.3 7.8 12.3 7.8 φ10.2 φ10.2 R2.5 Material: 6063-T5 Door Sliding Slot Accessories Panel Fasteners / Panels /
R2.5
R2
Surface Treatment: Clear Anodize
P.1262 Part Number 3Overall Length L Profile Type Mass Cross Sectional Moment of inertia P.1262
1Type
17 LCF10 2Profile (0.5mm increments) Standard kg/m ℓx(cm ) ℓy(cm ) 17
4
4
2.52
26.72
16.01
50 ~ 4000*
Aluminum Frames / Related Accessories * Aluminum Frame orders with more than 2m in length may incur a surcharge. Heavy Duty 2.9 30.09 17.79 Related Accessories Aluminum Frames /
4560
LCFW10
* Aluminum Frame orders within the range of 4m - 6m in length may soon be available. Check eCatalog for updates!
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
3Overall Length L
Part Number (1Type - 2Profile)
-
Example
-
1000
LCF10-4560
QDifferences between economy series and standard product
Standard product Economy series European standard profile
Material H series 6N01SS-T5 / N series 6063S-T5 6063-T5
Manufacturing Standard Japanese Industrial Profile JIS Industrial Profile GB_T6892
Cross Section 5 series 20 / 25 6 series 30 8 series 40 / 45 20 / 25 30 / 40 45
Slot Width (mm) 6 8 10 6.2 8.2 10.2
RoHS10 Supported Not supported
Broad application in high-precision equipment frames, clean
Applications rooms with high cleanliness and appearance requirements, Broad application in industrial assembly line equipment
frames, hoods, bases, trolley safety fences, etc.
especially in the electronic, semiconductor and medical industries
Alteration Ordering Part Number (1Type - 2Profile) - 3Overall Length L - (TPW...etc.)
Example
LCF10-4560 - 250 - TPW
For the selection of alterations, please refer to P.1275 ~ P.1280.
A variety of alterations are available, such as 45-Degree Cutting, End Tapping, Drilling Wrench Hole, Counterboring, Blind Joint Dedicated Holes, etc.
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type LCF10 Keyword 45 frame MISUMI
Economy series
