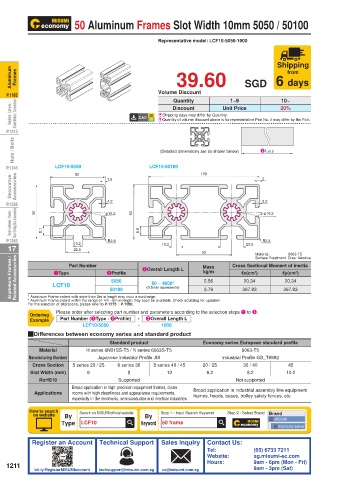

Page 1216 - MISUMI SINGAPORE Economy Series

50 Aluminum Frames Slot Width 10mm 5050 / 50100

Representative model: LCF10-5050-1000

Shipping
Aluminum Frames 39.60 SGD 6 days Frames Aluminum
from

P.1183 Volume Discount 1~9 10~ P.1183
Quantity
Brackets / Corners / Sheet Metals / Connectors E Shipping days may differ by Quantity. 20% Sheet Metals / Connectors Brackets / Corners /
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
P.1215 P.1215
Nuts / Bolts (Detailed dimensions are as shown below) 3L±0.5 Nuts / Bolts

LCF10-5050
P.1243 50 50 LCF10-50100 100 100 P.1243
Decorative Accessories 1.9 1.9 2 2 Accessories Decorative

3.2
3.2
4.2
4.2
P.1258 50 φ10.2 φ10.2 2-φ10.2 2-φ10.2 P.1258
Panel Fasteners / Panels / Door Sliding Slot Accessories 8.1 8.1 50 8.8 50 8.8 Door Sliding Slot Accessories Panel Fasteners / Panels /
50
P.1262 10.2 10.2 R2.5 R2.5 R2.5 R2.5 P.1262
17 22.6 22.6 10.2 10.2 20.5 20.5 17
50 50 Material: 6063-T5
Aluminum Frames / Related Accessories LCF10 Part Number 2Profile 3Overall Length L Mass Cross Sectional Moment of inertia Related Accessories Aluminum Frames /
Surface Treatment: Clear Anodize
kg/m
1Type
ℓy(cm )
ℓx(cm )
4
4
20.34
5050
2.56
20.34
50 ~ 4000*
(0.5mm increments)
3.79
397.83
397.83
50100
* Aluminum Frame orders with more than 2m in length may incur a surcharge.
* Aluminum Frame orders within the range of 4m - 6m in length may soon be available. Check eCatalog for updates!
For the selection of alterations, please refer to P.1275 ~ P.1280.
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type - 2Profile) - 3Overall Length L
LCF10-5050 - 1000
QDifferences between economy series and standard product
Standard product Economy series European standard profile
Material H series 6N01SS-T5 / N series 6063S-T5 6063-T5
Manufacturing Standard Japanese Industrial Profile JIS Industrial Profile GB_T6892
Cross Section 5 series 20 / 25 6 series 30 8 series 40 / 45 20 / 25 30 / 40 45
Slot Width (mm) 6 8 10 6.2 8.2 10.2
RoHS10 Supported Not supported
Broad application in high-precision equipment frames, clean
Applications rooms with high cleanliness and appearance requirements, Broad application in industrial assembly line equipment
especially in the electronic, semiconductor and medical industries frames, hoods, bases, trolley safety fences, etc.
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type LCF10 Keyword 50 frame MISUMI
Economy series
