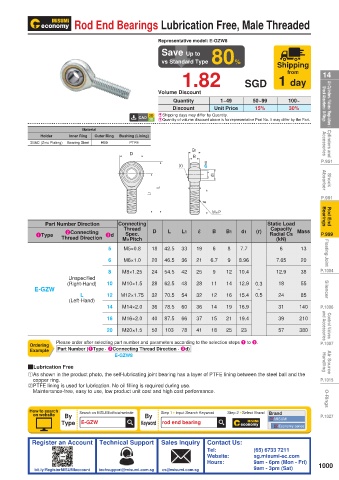

Page 1005 - MISUMI SINGAPORE Economy Series

Rod End Bearings Lubrication Free, Male Threaded

Representative model: E-GZW8
Save Up to
vs Standard Type 80% Shipping
1.82 SGD 1 day 14
from

Volume Discount
Quantity 1~49 50~99 100~
Discount Unit Price 15% 30% Shock Absorbers / O-Rings Air Cylinders / Valves / Regulators /
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
Holder Inner Ring Outer Ring Bushing (Lining)
S45C (Zinc Plating) Bearing Steel H59 PTFE Accessories Cylinders and
B1
D
B
P.951
(r) dH8
d1 Absorber Shock
L
L1
P.991
l
M×P Bearings Rod End
Part Number Direction Connecting Static Load
Thread
Capacity
2Connecting
Spec.
1Type Thread Direction 3d M×Pitch D L L1 L B B1 d1 (r) Radial Cs Mass P.999
(kN)
5 M5×0.8 18 42.5 33 19 6 8 7.7 6 13 Floating Joint
6 M6×1.0 20 46.5 36 21 6.7 9 8.96 7.65 20
8 M8×1.25 24 54.5 42 25 9 12 10.4 12.9 38 P.1004
Unspecified
(Right-Hand) 10 M10×1.5 28 62.5 48 28 11 14 12.9 0.3 18 55
E-GZW ~ Silencer
L 12 M12×1.75 32 70.5 54 32 12 16 15.4 0.5 24 85
(Left-Hand)
14 M14×2.0 36 78.5 60 36 14 19 16.9 31 140 P.1006
16 M16×2.0 40 87.5 66 37 15 21 19.4 39 210
20 M20×1.5 50 103 78 41 18 25 23 57 380 and Accessories Control Valves
Please order after selecting part number and parameters according to the selection steps 1 to 3. P.1007
Ordering
Example Part Number (1Type · 2Connecting Thread Direction · 3d)
E-GZW8
QLubrication Free Handling Air Source
1 As shown in the product photo, the self-lubricating joint bearing has a layer of PTFE lining between the steel ball and the
copper ring. P.1015
2 PTFE lining is used for lubrication. No oil filling is required during use.
Maintenance-free, easy to use, low product unit cost and high cost performance. O-Rings

How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By P.1027
Type E-GZW Keyword rod end bearing MISUMI
Economy series
