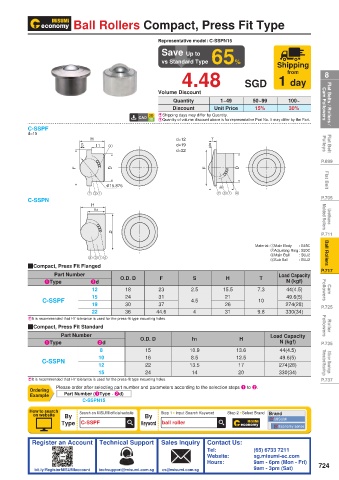

Page 729 - MISUMI SINGAPORE Economy Series

Ball Rollers Compact, Press Fit Type

Representative model: C-SSPN15
Save Up to
vs Standard Type 65% Shipping
4.48 SGD 1 day 8
from

Volume Discount
Quantity 1~49 50~99 100~
Discount Unit Price 15% 30% Cam Followers Flat Belts / Rollers /
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
C-SSPF
d=15
H H T d=12 T H H
S 11 4 S 11 4 Sd=19 S h1 h1 Pulleys Flat Belt
d=22
P.699
F F D D F D F D D D

φ 15.875 φ 15.875 H H Flat Belt
2 3 1 2 3 1 2 3 1 4 2 3 1 4 2 3 1 4 2 3 1 4
C-SSPN P.705
H T H
S 11 4 S h1 Molded Rollers Urethane

F D F D D P.711
Material: 1Main Body : S45C
φ 15.875 H 2Adjusting Ring : S20C Ball Rollers
2 3 1 2 3 1 4 2 3 1 4 3Main Ball : SUJ2
: SUJ2
4Sub Ball
QCompact, Press Fit Flanged
Part Number Load Capacity P.717
1Type 2d O.D. D F S H T N (kgf)
12 18 23 2.5 15.5 7.3 44(4.5) Followers Cam
15 24 31 21 49.6(5)
C-SSPF 4.5 10
19 30 37 26 274(28) P.725
22 36 44.6 4 31 9.8 330(34)
E It is recommended that H7 tolerance is used for the press-fit type mounting holes.
QCompact, Press Fit Standard Followers Roller
Part Number Load Capacity
1Type 2d O.D. D h1 H N (kgf) P.735
8 15 10.9 13.6 44(4.5)
10 16 8.5 12.5 49.6(5)
C-SSPN
12 22 13.5 17 274(28) Threaded Bearings Silicon Bearings
15 24 14 20 330(34)
E It is recommended that H7 tolerance is used for the press-fit type mounting holes. P.737
Please order after selecting part number and parameters according to the selection steps 1 to 2.
Ordering
Example Part Number (1Type · 2d)
C-SSPN15
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-SSPF Keyword ball roller MISUMI
Economy series
Register an Account Technical Support Sales Inquiry Contact Us:
Tel: (65) 6733 7211
Website: sg.misumi-ec.com
Hours: 9am - 6pm (Mon - Fri) 724
bit.ly/RegisterMISUMIaccount techsupport@misumi.com.sg cs@misumi.com.sg 9am - 3pm (Sat)
