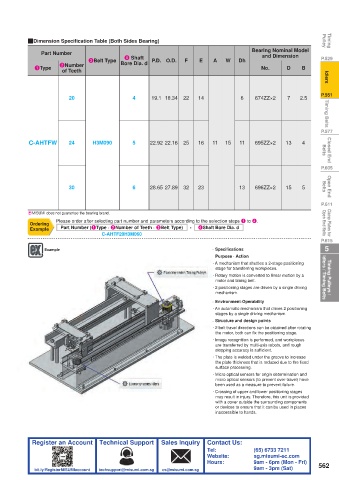

Page 567 - MISUMI SINGAPORE Economy Series

QDimension Specification Table (Both Sides Bearing) Pulley Timing
Part Number Bearing Nominal Model
and Dimension
3Belt Type 4 Shaft P.D. O.D. F E A W Dh P.529
2Number Bore Dia. d
1Type of Teeth No. D B Idlers

20 4 19.1 18.34 22 14 6 674ZZ×2 7 2.5 P.551

P.577
Timing Belts
C-AHTFW 24 H3M090 5 22.92 22.16 25 16 11 15 11 695ZZ×2 13 4 Belts Closed End

P.605

30 6 28.65 27.89 32 23 13 696ZZ×2 15 5 Belts Open End

P.611
E MISUMI does not guarantee the bearing brand.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering Open End Belts Clamp Plates for
Example Part Number (1Type · 2Number of Teeth · 3Belt Type) - 4Shaft Bore Dia. d
C-AHTF20H3M060
P.615
Example · Specifications 5
Purpose · Action
· A mechanism that shuttles a 2-stage positioning
stage for transferring workpieces.
· Rotary motion is converted to linear motion by a Idlers / Timing Belts
motor and timing belt. Timing Pulleys /
· 2 positioning stages are driven by a single driving
mechanism.
· Environment·Operability
· An automatic mechanism that drives 2 positioning
stages by a single driving mechanism.
· Structure and design points
· 2 belt travel directions can be obtained after rotating
the motor, both can fix the positioning stage.
· Image recognition is performed, and workpieces
are transferred by multi-axis robots, and rough
stopping accuracy is sufficient.
· The plate is welded under the groove to increase
the plate thickness that is reduced due to the fixed
surface processing.
· Micro optical sensors for origin determination and
micro optical sensors (to prevent over-travel) have
been used as a measure to prevent failure.
· Crossing of upper and lower positioning stages
may result in injury. Therefore, this unit is provided
with a cover outside the surrounding components
or devices to ensure that it can be used in places
inaccessible to hands.
