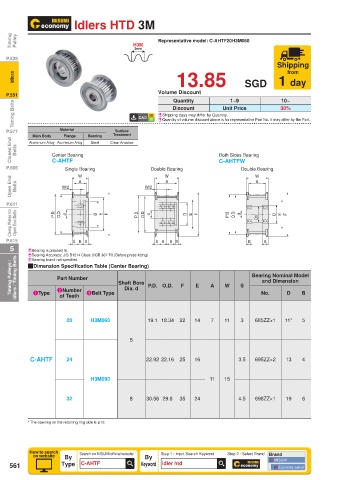

Page 566 - MISUMI SINGAPORE Economy Series

Idlers HTD 3M

Timing Pulley H3M Representative model: C-AHTF20H3M060

3mm
P.529
Shipping
from
Idlers 13.85 SGD 1 day

Volume Discount
P.551 Quantity 1~9 10~
Timing Belts E Shipping days may differ by Quantity. 30%
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
P.577 Main Body Material Bearing Treatment
Surface
Flange
Closed End Belts Aluminum Alloy Aluminum Alloy Steel Clear Anodize Both Sides Bearing
Center Bearing
P.605 C-AHTF W Double Bearing C-AHTFW W
Single Bearing
Double Bearing
W
Open End Belts W/2 A W/2 A A

P.611
Clamp Plates for Open End Belts P.D. O.D. d D E F P.D. O.D. d D E F P.D. O.D. d Dh D E F

P.615 S B S S B B S B B
5 E Bearing is pressed fit.
E Bearing Accuracy: JIS B1514 Class 0/GB 307 P0 (Before press-fitting)
E Bearing brand not specified
Timing Pulleys / Idlers / Timing Belts 1Type Part Number 3Belt Type Shaft Bore P.D. O.D. F E A W S Bearing Nominal Model
QDimension Specification Table (Center Bearing)
and Dimension
Dia. d
2Number
B
No.
D
of Teeth
20 H3M060 19.1 18.34 22 14 7 11 3 685ZZ×1 11* 5

5

C-AHTF 24 22.92 22.16 25 16 3.5 695ZZ×2 13 4

H3M090 11 15

32 8 30.56 29.8 35 24 4.5 698ZZ×1 19 6

* The opening on the retaining ring side is φ12.

How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
561 Type C-AHTF Keyword idler htd Economy series
