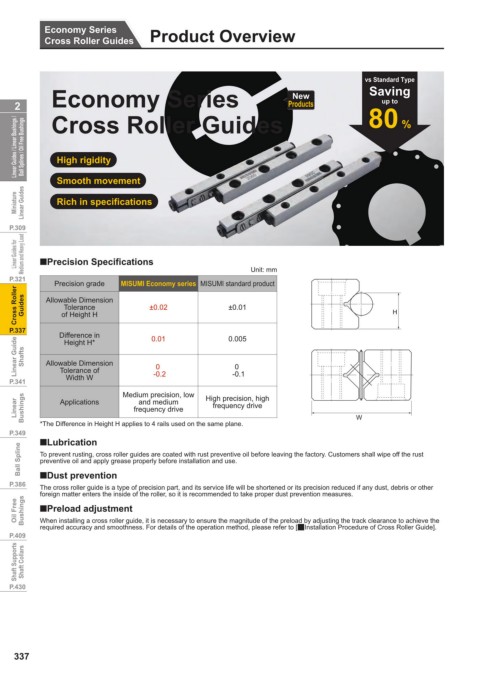

Economy Series Product Overview Product Overview Economy Series
Cross Roller Guides Cross Roller Guides

vs Standard Type
Economy Series New Saving
up to
2 Cross Roller Guides Products 80 % 2
Linear Guides / Linear Bushings / Ball Splines / Oil Free Bushings High rigidity Ball Splines / Oil Free Bushings Linear Guides / Linear Bushings /

Smooth movement

Miniature Linear Guides Rich in specifications Linear Guides Miniature

P.309 P.309
Linear Guides for Medium and Heavy Load QPrecision Specifications Medium and Heavy Load Linear Guides for

Unit: mm
P.321 Precision grade MISUMI Economy series MISUMI standard product P.321
Cross Roller Guides Allowable Dimension ±0.02 ±0.01 H Guides Cross Roller

Tolerance
of Height H
P.337 Difference in 0.01 0.005 P.337
Linear Guide Shafts Allowable Dimension 0 0 Shafts Linear Guide
Height H*

-0.2
Width W
P.341 Tolerance of Medium precision, low -0.1 P.341
Linear Bushings Applications frequency drive High precision, high W Bushings Linear
and medium
frequency drive

P.349 *The Difference in Height H applies to 4 rails used on the same plane. P.349
QLubrication
Ball Spline To prevent rusting, cross roller guides are coated with rust preventive oil before leaving the factory. Customers shall wipe off the rust Ball Spline
preventive oil and apply grease properly before installation and use.

P.386 QDust prevention P.386
The cross roller guide is a type of precision part, and its service life will be shortened or its precision reduced if any dust, debris or other
foreign matter enters the inside of the roller, so it is recommended to take proper dust prevention measures.
Oil Free Bushings QPreload adjustment Bushings Oil Free
When installing a cross roller guide, it is necessary to ensure the magnitude of the preload by adjusting the track clearance to achieve the
required accuracy and smoothness. For details of the operation method, please refer to [QInstallation Procedure of Cross Roller Guide].
