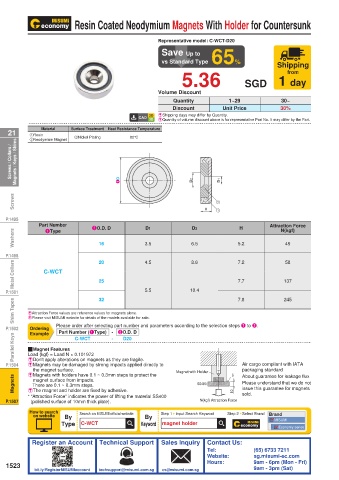

Page 1528 - MISUMI SINGAPORE Economy Series

Resin Coated Neodymium Magnets With Holder for Countersunk

Representative model: C-WCT-D20
Save Up to
vs Standard Type 65% Shipping
5.36 SGD 1 day
from

Volume Discount
Quantity 1~29 30~
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
21 1Resin Material Surface Treatment Heat Resistance Temperature
80°C
2Nickel Plating
2Neodymium Magnet
Screws / Collars / Magnets / Keys / Shims 2D D2 D1

Screws 2
H
1
P.1495
Part Number 2O.D. D D1 D2 H Attraction Force
N{kgf}
1Type
Washers 16 3.5 6.5 5.2 49

P.1498 20 4.5 8.6 7.2 58
Metal Collars C-WCT 25 7.7 137

P.1501 32 5.5 10.4 7.8 245
Shim Tapes E Attraction Force values are reference values for magnets alone.

EPlease visit MISUMI website for details of the models available for sale.
P.1502 Ordering Please order after selecting part number and parameters according to the selection steps 1 to 2.
2O.D. D
Part Number (1Type)
-
Example
Parallel Keys QMagnet Features C-WCT - D20
Load {kgf} = Load N × 0.101972
E Magnets may be damaged by strong impacts applied directly to
P.1504 EDon't apply alterations on magnets as they are fragile. Air cargo compliant with IATA
the magnet surface. Magnet with Holder G packaging standard
E Magnets with holders have 0.1 ~ 0.3mm steps to protect the
About guarantee for leakage flux
Magnets There are 0.1 ~ 0.3mm steps. SS400 Please understand that we do not
magnet surface from impacts.
issue this guarantee for magnets
E The magnet and holder are fixed by adhesive.
* “Attraction Force” indicates the power of lifting the material SS400 10 sold.
P.1507 (polished surface of 10mm thick plate). N{kgf} Attraction Force
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-WCT Keyword magnet holder MISUMI
Economy series
