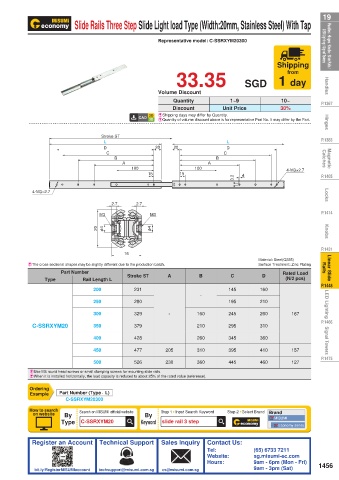

Page 1461 - MISUMI SINGAPORE Economy Series

19
Slide Rails Three Step Slide Light load Type (Width:20mm, Stainless Steel) With Tap

Representative model: C-SSRXYM20300 LED Lighting / Signal Towers Handles / Hinges / Knobs / Slide Rails /

Shipping
33.35 SGD 1 day
from

Volume Discount Handles
Quantity 1~9 10~ P.1367
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part. Hinges

Stroke ST
L L P.1383
D 20 20 D
C C
B B Catches Magnetic
A A
100 100 4-M3×2.7
15 15 4
3.2 P.1405
4-M3×2.7 Locks
2.7 2.7
M3 M3 P.1414

20 φ4 φ4 Knobs

P.1431
16
Material: Steel(Q235)
E The cross-sectional shapes may be slightly different due to the production batch. Surface Treatment: Zinc Plating
Part Number Rated Load Rails Linear Slide
Type Rail Length L Stroke ST A B C D (N/2 pcs)
P.1448
200 231 145 160
-
250 280 195 210 LED Lighting
300 329 - 160 245 260 167
P.1466
C-SSRXYM20 350 379 210 295 310

400 428 260 345 360 Signal Towers
450 477 205 310 395 410 157
P.1475
500 526 230 360 445 460 127
E Use M3 round head screws or small clamping screws for mounting slide rails.
E When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).
Ordering
Example Part Number (Type · L)
C-SSRXYM20300
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
Type C-SSRXYM20 Keyword slide rail 3 step
Economy series
