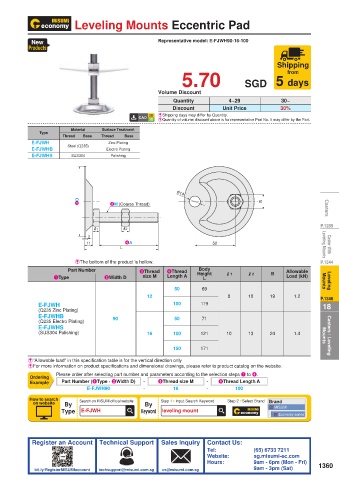

Page 1365 - MISUMI SINGAPORE Economy Series

Leveling Mounts Eccentric Pad

New Representative model: E-FJWH90-16-100
Products

Shipping
5.70 SGD 5 days
from

Volume Discount
Quantity 4~29 30~
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Surface Treatment
Type
Thread Base Thread Base
E-FJWH Steel (Q235) Zinc Plating
E-FJWHB Electro Plating
E-FJWHS SUS304 Polishing

φ 14
2D 3M (Coarse Thread) B Casters

P.1289
L1 L2
2
11 4A 52 Leveling Mounts Caster With
L
E The bottom of the product is hollow. P.1344
Body
Part Number 3Thread 4Thread Height B Allowable
1Type 2Width D size M Length A L R1 R2 Load (kN) Mounts Leveling
50 69
12 8 10 19 1.2 P.1346
E-FJWH 100 119 18
(Q235 Zinc Plating)
E-FJWHB 90 50 71
(Q235 Electro Plating)
E-FJWHS
(SUS304 Polishing) 16 100 121 10 13 24 1.4 Mounts Casters / Leveling

150 171
E “Allowable load” in this specification table is for the vertical direction only
E For more information on product specifications and dimensional drawings, please refer to product catalog on the website.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number (1Type · 2Width D) - 3Thread size M - 4Thread Length A
E-FJWH90 - 16 - 100
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type E-FJWH Keyword leveling mount MISUMI
Economy series
