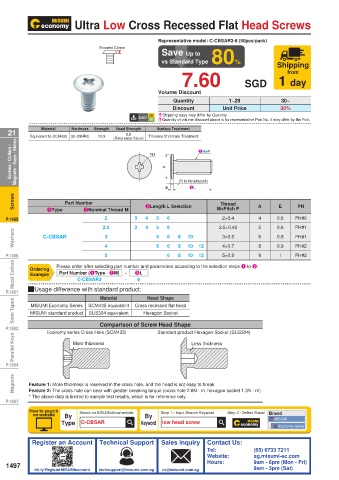

Page 1502 - MISUMI SINGAPORE Economy Series

Ultra Low Cross Recessed Flat Head Screws

Representative model: C-CBSAR3-6 (50pcs/pack)
Thinnest 0.5mm
Save Up to
vs Standard Type 80% Shipping
7.60 SGD 1 day
from

Volume Discount
Quantity 1~29 30~
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Head Strength
Surface Treatment
Material
Hardness
21 Equivalent to SCM435 32~39HRC Strength (Reference Value) Trivalent Chromate Treatment
5.8
10.9
Screws / Collars / Magnets / Keys / Shims PH A 2M×P

3L
E (To the first starting tooth)
Screws 1Type Part Number 3Length L Selection M×Pitch P A E PH
Thread
2Nominal Thread M
P.1495 2 3 4 5 6 2×0.4 4 0.5 PH#0
2.5 3 4 5 6 2.5×0.45 5 0.6 PH#1
Washers C-CBSAR 3 4 5 5 6 6 8 8 10 12 3×0.5 6 8 0.8 PH#1

10
0.9
4×0.7
PH#2
P.1498 5 6 8 10 12 5×0.8 9 1 PH#2
Metal Collars Ordering Please order after selecting part number and parameters according to the selection steps 1 to 3.
-
3L
Part Number (1Type · 2M)
Example
6
C-CBSAR3
-
P.1501 QUsage difference with standard product:
Material Head Shape
Shim Tapes MISUMI standard product SCM435 equivalent Cross recessed flat head
MISUMI Economy Series
SUS304 equivalent
Hexagon Socket
Comparison of Screw Head Shape
P.1502 Economy series Cross Hole (SCM435) Standard product Hexagon Socket (SUS304)
Parallel Keys More thickness Less thickness
P.1504
Magnets Feature 1: More thickness is reserved in the cross hole, and the head is not easy to break

Feature 2: The cross hole can bear with greater breaking torque (cross hole 2.6N · m, hexagon socket 1.3N · m)
* The above data is limited to sample test results, which is for reference only.
P.1507
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-CBSAR Keyword low head screw MISUMI
Economy series
