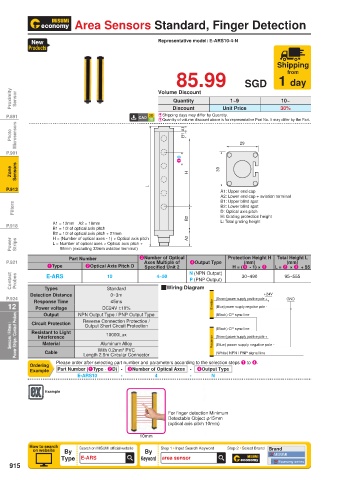

Page 920 - MISUMI SINGAPORE Economy Series

Area Sensors Standard, Finger Detection

New Representative model: E-ARS10-4-N
Products

Shipping
85.99 SGD 1 day
from

Proximity Sensor Volume Discount 1~9 10~
Quantity
Discount
Unit Price
P.891 E Shipping days may differ by Quantity. 30%
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Microsensors B1 29
Photo A1

P.901
2D
Zone Sensors H 30

P.913 L A1: Upper end cap
A2: Lower end cap + aviation terminal
B1: Upper blind spot
Filters B2: Lower blind spot
D: Optical axis pitch
B2 H: Grating protection height
A1 = 12mm A2 = 19mm L: Total grating height
P.918
B1 = 1/2 of optical axis pitch
B2 = 1/2 of optical axis pitch + 27mm
H = (Number of optical axes - 1) × Optical axis pitch
Power Strips L = Number of optical axes × Optical axis pitch + A2
55mm (excluding 33mm aviation terminal)
Part Number 3Number of Optical Protection Height H Total Height L
P.921 Axes Multiple of 4Output Type (mm) (mm)
1Type 2Optical Axis Pitch D Specified Unit 2 H = (3 - 1) × 2 L = 2 × 3 + 55
Contact Probes E-ARS 10 4~50 N (NPN Output) 30~490 95~555
P (PNP Output)
QWiring Diagram
Types
0~3m
Detection Distance Standard +24V
P.924 Response Time ≤5ms GND
12 Power voltage NPN Output Type / PNP Output Type Emitter (Brown) power supply positive pole +
(Blue) power supply negative pole -
DC24V ±10%
Output
(Black) CP sync line
Sensors / Filters / Power Strips / Contact Probes Circuit Protection Reverse Connection Protection / Receiver (Black) CP sync line
Output Short Circuit Protection
Resistant to Light
10000Lux
Interference
(Brown) power supply positive pole +
Material
Aluminum Alloy
(Blue) power supply negative pole -
With 0.2mm PVC
2
Cable
(White) NPN / PNP signal line
Length 2.5m Circular Connector
Ordering Please order after selecting part number and parameters according to the selection steps 1 to 4.
Example Part Number (1Type · 2D) - 3Number of Optical Axes - 4Output Type
E-ARS10 - 4 - N
Example
For finger detection Minimum
Detectable Object φ15mm
(optical axis pitch 10mm)
10mm
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type E-ARS Keyword area sensor MISUMI
Economy series
915
