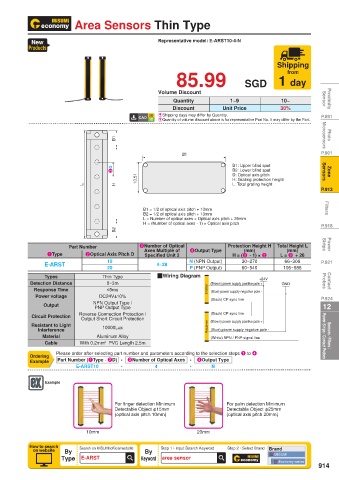

Page 919 - MISUMI SINGAPORE Economy Series

Economy series Product Overview Area Sensors Thin Type
Area Sensors

New Representative model: E-ARST10-4-N
Products

Shipping
85.99 SGD 1 day
from

Volume Discount
Quantity 1~9 10~ Sensor Proximity
Discount Unit Price 30%
E Shipping days may differ by Quantity. P.891
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

B1 Microsensors Photo

28 P.901
B1: Upper blind spot
2D B2: Lower blind spot Sensors Zone
13.51 D: Optical axis pitch
H: Grating protection height
L H L: Total grating height
P.913

B1 = 1/2 of optical axis pitch + 13mm Filters
B2 = 1/2 of optical axis pitch + 13mm
L = Number of optical axes × Optical axis pitch + 26mm
H = (Number of optical axes - 1) × Optical axis pitch P.918
B2

Part Number 3Number of Optical 4Output Type Protection Height H Total Height L Strips Power
(mm)
(mm)
Axes Multiple of
1Type 2Optical Axis Pitch D Specified Unit 2 H = (3 - 1) × 2 L = 3 + 26
E-ARST 10 4~28 N (NPN Output) 30~270 66~306 P.921
20 P (PNP Output) 60~540 106~586
Types Thin Type QWiring Diagram +24V
Detection Distance 0~3m GND Probes Contact
Response Time ≤5ms Emitter (Brown) power supply positive pole +
(Blue) power supply negative pole -
Power voltage DC24V±10% (Black) CP sync line P.924
Output NPN Output Type / 12
PNP Output Type
Circuit Protection Reverse Connection Protection / (Black) CP sync line
Output Short Circuit Protection (Brown) power supply positive pole +
Resistant to Light 10000Lux Receiver
Interference (Blue) power supply negative pole -
Material Aluminum Alloy (White) NPN / PNP signal line Power Strips / Contact Probes Sensors / Filters /
Cable With 0.2mm PVC Length 2.5m
2
Ordering Please order after selecting part number and parameters according to the selection steps 1 to 4.
Example Part Number (1Type · 2D) - 3Number of Optical Axes - 4Output Type
E-ARST10 - 4 - N

Example

For finger detection Minimum For palm detection Minimum
Detectable Object φ15mm Detectable Object φ25mm
(optical axis pitch 10mm) (optical axis pitch 20mm)

10mm 20mm

How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type E-ARST Keyword area sensor MISUMI
Economy series
914
