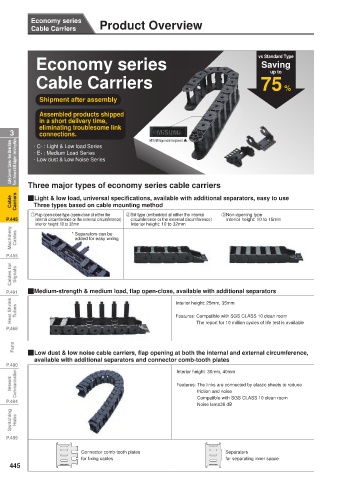

Page 450 - MISUMI SINGAPORE Economy Series

Economy series Product Overview Technical Calculation Economy series
Cable Carriers Cable Carriers

Economy series vs Standard Type
Saving
up to
Cable Carriers 75 %

Shipment after assembly

Assembled products shipped
in a short delivery time,
eliminating troublesome link
3 · C- : Light & Low load Series MISUMI logo model engraved 3
connections.
Cable Carriers / Cables / Heat Shrink Tubes Fans / Network USB Adapter / Switching Hubs · E- : Medium Load Series Fans / Network USB Adapter / Switching Hubs Cable Carriers / Cables / Heat Shrink Tubes

· Low dust & Low Noise Series

QLight & low load, universal specifications, available with additional separators, easy to use
Cable Carriers Three major types of economy series cable carriers Carriers Cable
Three types based on cable mounting method
1 Flap open-close type (open-close at either the 2 Slit type (embedded at either the internal 3 Non-opening type
P.445 internal circumference or the external circumference) circumference or the external circumference) Interior height: 10 to 15mm P.445
Interior height: 10 to 32mm Interior height: 10 to 32mm
Machinery Cables * Separators can be Cables Machinery
added for easy wiring

P.455 P.455
Cables for Signals Signals Cables for

P.461 QMedium-strength & medium load, flap open-close, available with additional separators P.461
Heat Shrink Tubes Interior height: 25mm, 35mm Tubes Heat Shrink

Features: Compatible with SGS CLASS 10 clean room

P.468 The report for 10 million cycles of life test is available P.468

Fans Q Low dust & low noise cable carriers, flap opening at both the internal and external circumference, Fans

available with additional separators and connector comb-tooth plates
P.480 Interior height: 30mm, 40mm P.480
Network Communication Features: The links are connected by elastic sheets to reduce Communication Network

friction and noise
P.484 Compatible with SGS CLASS 10 clean room P.484
Noise test≤38 dB
Switching Hubs Hubs Switching

P.489 P.489

Connector comb-tooth plates Separators
for fixing cables for separating inner space
