Page 448 - MISUMI SINGAPORE Economy Series

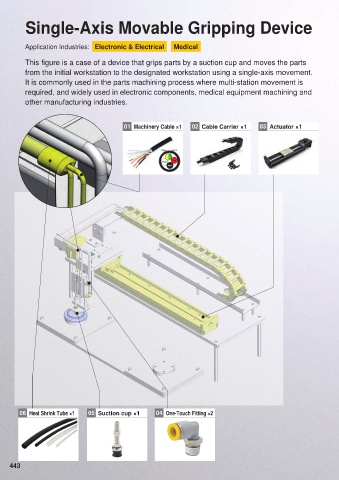

Single-Axis Movable Gripping Device Reference price

Application Industries: Electronic & Electrical Medical

This figure is a case of a device that grips parts by a suction cup and moves the parts
from the initial workstation to the designated workstation using a single-axis movement.
It is commonly used in the parts machining process where multi-station movement is 622.02 SGD/set
required, and widely used in electronic components, medical equipment machining and
other manufacturing industries.

01 Machinery Cable ×1 02 Cable Carrier ×1 03 Actuator ×1 01 Machinery Cable ×1 P.456 02 Cable Carrier ×1 P.448

Conductor section area 0.75mm² Interior height 15mm
Number of cores 4 Interior width 40mm
Length 100m Bending radius 48mm
Yellow Green Yellow Green
TRVV-0.75-4-100 Number of links 20
Red C-MPU15-40-48-20
White White Red
Black Black
183.06 25.70
SGD/roll SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 183.06 183.06 1 25.70 25.70
10 128.15 1,281.50 10 17.99 179.90

03 Actuator ×1 P.133 04 One-Touch Fitting ×2 P.1090

CoverNot Provided Applicable tube O.D. 6mm
Base Length 100mm Connecting thread nominal 1(R1/8)
Sliding Block 1 pcs MEPL6-1
Motor Attachment F1
C-KS4001-B1-100-F1
392.30 0.83

SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 392.30 392.30 1 0.83 0.83
10 313.84 3,138.40 200 0.71 142.00

05 Suction Cup ×1 P.1053 06 Heat Shrink Tube ×1 P.469

Suction cup shape Flat Flame retardance Provided
Rubber material Nitrile rubber I.D. (Before shrinkage) 1.5mm
O.D. 10mm I.D. (After shrinkage) ≤0.65mm
E-MZU10-N-M6 Packing specification 100m/roll
MTUBE-B-1
12.10 7.20
06 Heat Shrink Tube ×1 05 Suction cup ×1 04 One-Touch Fitting ×2
SGD/pcs SGD/roll
Quantity Unit price Total price Quantity Unit price Total price
1 12.10 12.10 1 7.20 7.20
10 8.47 84.70 30 5.04 151.20
* All products prices are without tax. For prices reference, please visit MISUMI official website.
443 * The reference price is estimated based on the quantity or approximate length of the product used in the example,
and is not calculated as a starting price.
