Hole Groove Depth Detection Fixture Reference price

Application industries: Automotive part Home appliance

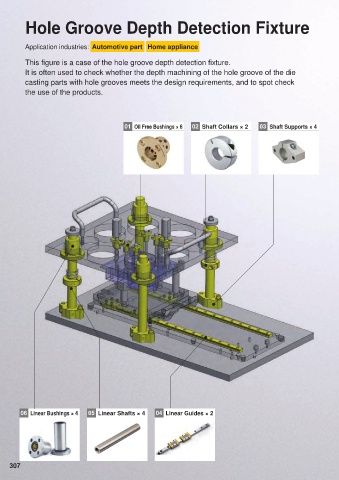

This figure is a case of the hole groove depth detection fixture.
It is often used to check whether the depth machining of the hole groove of the die
casting parts with hole grooves meets the design requirements, and to spot check 265.40 SGD/set
the use of the products.

01 Oil Free Bushings × 6 02 Shaft Collars × 2 03 Shaft Supports × 4 01 Oil Free Bushings × 6 P.413 02 Shaft Collars × 2 P.436

Mounting Type Round Flanged I.D. 20mm
I.D. 8mm Thickness 12mm
Total Length 20mm O.D. 40mm
C-MUTZ8-20 C-SCSAW20-12

8.20 4.20

SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 8.20 8.20 1 4.20 4.20
30 5.74 172.20 50 3.57 178.50

03 Shaft Supports × 4 P.432 04 Linear Guides × 2 P.313

I.D. 20mm Nominal model 15
C-SHFMQ20 Length 390mm
E-GMLG15-390-B2

4.52 62.14

SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 4.52 4.52 1 62.14 62.14
50 3.85 192.50 10 49.72 497.20

05 Linear Shafts × 4 P.345 06 Linear Bushings × 4 P.353

One End Tapped Diameter of Inscribed Circle 20mm
Shaft Dia. 20mm O.D. (φ) 32mm
Length 210mm Total Length 42mm
Thread Nominal M6 No Surface Treatment
E-PSFJT20-210-M6 Standard Counterbored Holes
C-LMF20UU
11.90 4.46
06 Linear Bushings × 4 05 Linear Shafts × 4 04 Linear Guides × 2
SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
2 11.90 23.80 1 4.46 4.46
10 9.52 95.20 50 3.80 190.00
* All products prices are without tax. For prices reference, please visit MISUMI official website.
