Page 954 - MISUMI SINGAPORE Economy Series

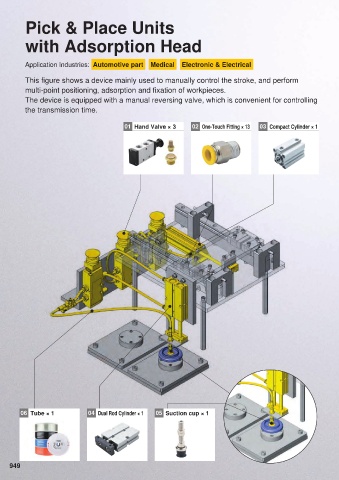

Pick & Place Units Reference price

with Adsorption Head

Application Industries: Automotive part Medical Electronic & Electrical

This figure shows a device mainly used to manually control the stroke, and perform
multi-point positioning, adsorption and fixation of workpieces. 164.22 SGD/set
The device is equipped with a manual reversing valve, which is convenient for controlling
the transmission time.

01 Hand Valve × 3 02 One-Touch Fitting × 13 03 Compact Cylinder × 1 01 Hand Valve × 3 P.1013 02 One-Touch Fitting × 13 P.1089

Specifications 200 Series Applicable tube O.D. 6mm
Piping Thread Nominal Diameter G1/8 Connecting thread nominal 1(R1/8)
Accessories - Silencer Not Provided MEPC6-1
E-MVP210-01

11.29 0.63

SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 11.29 11.29 1 0.63 0.63
10 7.91 79.10 200 0.54 108.00

03 Compact Cylinder × 1 P.957 04 Dual Rod Cylinder × 1 P.961

Cylinder Dia.: 20mm Cylinder Dia.: 20mm
Stroke: 100mm Stroke: 50mm
E-MSDNS20-100-NR-NS E-MTN20-50-NS

18.80 26.70

SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 18.80 18.80 1 26.70 26.70
10 15.04 150.40 10 18.69 186.90

05 Suction Cup × 1 P.1053 06 Tube × 1 P.1157

Suction cup shape Flat Color Black
Rubber material Nitrile rubber O.D. 6mm
O.D. 6mm Length 200m
E-MZU6-N-M5 MET6-200-B

5.50 71.16
06 Tube × 1 04 Dual Rod Cylinder × 1 05 Suction cup × 1
SGD/pcs SGD/roll
Quantity Unit price Total price Quantity Unit price Total price
1 5.50 5.50 1 71.16 71.16
30 3.85 115.50 10 49.82 498.20
* All products prices are without tax. For prices reference, please visit MISUMI official website.
949 * The reference price is estimated based on the quantity or approximate length of the product used in the example, and is not
calculated as a starting price.
