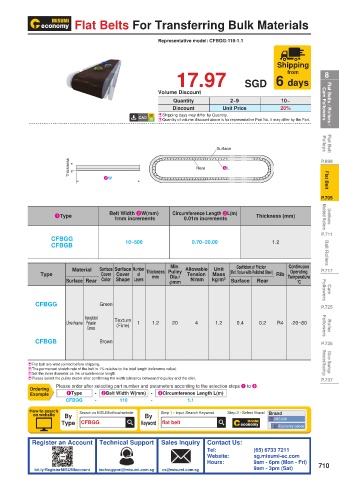

Page 715 - MISUMI SINGAPORE Economy Series

Flat Belts For Transferring Bulk Materials

Representative model: CFBGG-110-1.1

Shipping
17.97 SGD 6 days 8
from

Volume Discount
Quantity 2~9 10~
Discount Unit Price 20% Cam Followers Flat Belts / Rollers /
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

Surface Pulleys Flat Belt
Thickness 2W Rear 3L P.699

Flat Belt
P.705

1Type Belt Width 2W(mm) Circumference Length 3L(m) Thickness (mm) Molded Rollers Urethane
0.01m increments
1mm increments
P.711
CFBGG
CFBGB 10~500 0.70~20.00 1.2 Ball Rollers

Min.
Material Surface Surface Number Thickness Pulley Allowable Unit Coefficient of Friction Continuous P.717
Operating
Type Cover Cover of mm Dia.r Tension Mass (Ref. Value with Polished Steel) Rib Temperature
Surface Rear Color Shape Layers φmm N/mm kg/m 2 Surface Rear °C Followers Cam

CFBGG Green P.725

Impregnated
Urethane Polyester Texture 1 1.2 20 4 1.2 0.4 0.2 R4 -20~80
(Fine)
Canvas Followers Roller
CFBGB Brown P.735

E Flat belt are weld-jointed before shipping. Threaded Bearings Silicon Bearings
E The permanent stretch rate of the belt is 1% relative to the total length (reference value).
ESet the inner diameter as the circumference length.
E Please select the pulley model after confirming the width tolerance between the pulley and the idler. P.737
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example 1Type - 2Belt Width W(mm) - 3Circumference Length L(m)
CFBGG - 110 - 1.1
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type CFBGG Keyword flat belt MISUMI
Economy series
