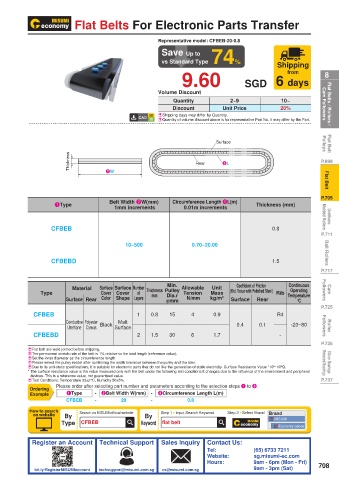

Page 713 - MISUMI SINGAPORE Economy Series

Flat Belts For Electronic Parts Transfer

Representative model: CFBEB-20-0.8
Save Up to
vs Standard Type 74% Shipping
9.60 SGD 6 days 8
from

Volume Discount
Quantity 2~9 10~
Discount Unit Price 20% Cam Followers Flat Belts / Rollers /
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

Surface Pulleys Flat Belt

Thickness 2W Rear 3L P.699

Flat Belt
P.705
1Type Belt Width 2W(mm) Circumference Length 3L(m) Thickness (mm)
1mm increments 0.01m increments

CFBEB 0.8 Molded Rollers Urethane
P.711
10~500 0.70~20.00

CFBEBD 1.5 Ball Rollers
P.717
Min.
Material Surface Surface Number Thickness Pulley Allowable Unit Coefficient of Friction Continuous Followers
Operating
Type Cover Cover of mm Dia.r Tension Mass (Ref. Value with Polished Steel) Rib Temperature Cam
Surface Rear Color Shape Layers φmm N/mm kg/m 2 Surface Rear °C
P.725
CFBEB 1 0.8 15 4 0.9 R4
Conductive Polyester Black Matt 0.4 0.1 -20~80
Urethane Canvas Surface Followers Roller
CFBEBD 2 1.5 30 6 1.7 -
P.735
E Flat belt are weld-jointed before shipping.
E The permanent stretch rate of the belt is 1% relative to the total length (reference value).
ESet the inner diameter as the circumference length.
E Please select the pulley model after confirming the width tolerance between the pulley and the idler. Threaded Bearings Silicon Bearings
EDue to its anti-static specifications, it is suitable for electronic parts that do not like the generation of static electricity. Surface Resistance Value *10 6 ~10 8 Ω.
* The surface resistance value is the value measured only with the belt under the following test conditions.It changes due to the influence of the environment and peripheral
devices. This is a reference value, not guaranteed value.
ETest Conditions: Temperature 23±2°C, Humidity 50±5%. P.737
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example 1Type - 2Belt Width W(mm) - 3Circumference Length L(m)
CFBEB - 20 - 0.8
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type CFBEB Keyword flat belt MISUMI
Economy series
