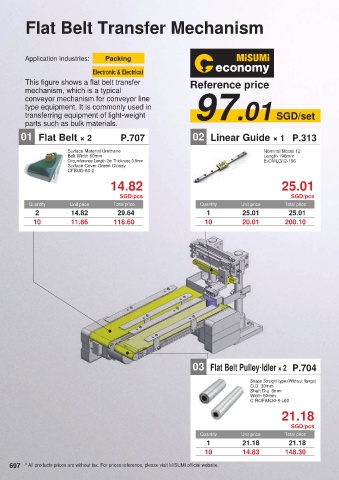

Flat Belt Transfer Mechanism

Application Industries: Packing

Electronic & Electrical
This figure shows a flat belt transfer Reference price
mechanism, which is a typical
conveyor mechanism for conveyor line
type equipment. It is commonly used in
transferring equipment of light-weight 97.01 SGD/set
parts such as bulk materials.

01 Flat Belt × 2 P.707 02 Linear Guide × 1 P.313

Surface Material Urethane Nominal Model 12
Belt Width 60mm Length 196mm
Circumference Length 2m Thickness 0.9mm E-GMLG12-196
Surface Cover Green Glossy
CFBUG-60-2
14.82 25.01
SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
2 14.82 29.64 1 25.01 25.01
10 11.86 118.60 10 20.01 200.10

03 Flat Belt Pulley·Idler × 2 P.704

Shape Straight type (Without flange)
O.D. 30mm
Shaft Dia. 8mm
Width 60mm
C-ROFAN30-8-L60
21.18

SGD/pcs
Quantity Unit price Total price
1 21.18 21.18
10 14.83 148.30

697 * All products prices are without tax. For prices reference, please visit MISUMI official website.
