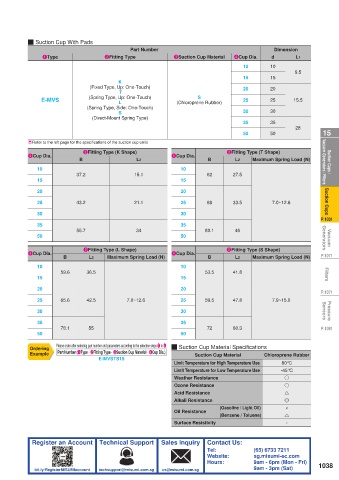

Page 1043 - MISUMI SINGAPORE Economy Series

Q Suction Cup With Pads
Part Number Dimension
1Type 2Fitting Type 3Suction Cup Material 4Cup Dia. d L1
10 10
9.5
15 15
K
(Fixed Type, Up: One-Touch) 20 20
T
S
E-MVS (Spring Type, Up: One-Touch) (Chloroprene Rubber) 25 25 15.5
L
(Spring Type, Side: One-Touch)
S 30 30
(Direct-Mount Spring Type)
35 35
28
50 50 15
E Refer to the left page for the specifications of the suction cup units
2Fitting Type (K Shape) 2Fitting Type (T Shape)
4Cup Dia. 4Cup Dia.
B L2 B L2 Maximum Spring Load (N) Vacuum Generators / Filters Suction Cups /
10 10
37.2 15.1 62 27.5
15 15
20 20
25 43.2 21.1 25 68 33.5 7.0~12.6 Suction Cups
30 30
P.1031
35 35
55.7 34 80.1 46
50 50 Generators Vacuum

2Fitting Type (L Shape) 2Fitting Type (S Shape)
4Cup Dia. 4Cup Dia.
B L2 Maximum Spring Load (N) B L2 Maximum Spring Load (N) P.1071
10 10
59.6 36.5 53.5 41.8
15 15 Filters
20 20
P.1071
25 65.6 42.5 7.0~12.6 25 59.5 47.8 7.9~15.0
30 30 Sensors Pressure
35 35
78.1 55 72 60.3 P.1081
50 50
Please order after selecting part number and parameters according to the selection steps 1 to 4. Q Suction Cup Material Specifications
Ordering
Example Part Number (1Type · 2Fitting Type · 3Suction Cup Material · 4Cup Dia.) Suction Cup Material Chloroprene Rubber
E-MVSTS15
Limit Temperature for High Temperature Use 80°C
Limit Temperature for Low Temperature Use -45°C
Weather Resistance G
Ozone Resistance G
Acid Resistance △
Alkali Resistance P
(Gasoline / Light Oil) ×
Oil Resistance
(Benzene / Toluene) △
Surface Resistivity -
